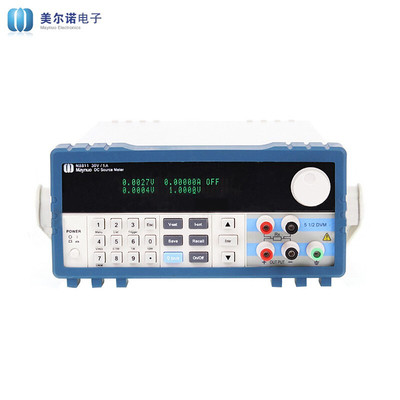

型号
| M8811
| M8812 | M8813 |
额定输出
| 0-30V,0-5A
| 0-75V,0-2A
| 0-150V,0-1A
|
负载调节率 | <0.01%+0.5mV,<0.01%+0.1mA
| <0.01%+0.5mV,<0.01%+0.1mA
| <0.01%+0.5mV,<0.01%+0.1mA
|
设定值分辨率
| 0.5mV,0.1mA
| 1mV,0.05mA
| 2mV,0.01mA
|
回读值分辨率
| 0.1mV,0.01mA
| 0.1mV,0.01mA
| 0.1mV,0.01mA
|
设定值精度
| 0.01%+2mV,0.05%+1mA
| 0.01%+5mV,0.05%+0.5mA
| 0.01%+10mV,0.05%+0.1mA
|
回读值精度
| 0.02%+5mV,0.1%+5mA
| 0.02%+15mV,0.05%+2mA
| 0.02%+35mV,0.05%+1mA
|
纹波
| 3mvp-p,2mA rms
| 5mvp-p,1mA rms
| 10mvp-p,0.5mA rms
|
电压表精度
| 0-12V 精度:0.02%+2mV;0-58V 精度:0.02%+5mV
|
毫欧表精度
| 10W 0-1000mΩ 精度:0.2%+3mΩ;1000-10000mΩ 精度:0.2%+6mΩ |
工作环境 | 0-40℃;0-90%RH
|
使用电源
| AC 120V/220V±10%;50/60Hz |
重量 | 6.5Kg
|
尺寸
| 214mm(W)*101.5mm(H)*365mm(D)
|
